What are Webhooks?

Webhooks are automated HTTP POST requests sent to your server when something happens in CallKaro AI — a call ends, a customer replies on WhatsApp, a template goes out. They let you push real-time data into your CRM, database, or internal tooling without polling our API. Every webhook uses the same envelope, so one endpoint can handle all of them:
Switch on event, read data. New events may be added over time, so ignore events you do not recognise rather than erroring.

​
The event catalogue

Only call_ended is enabled by default. Message events are opt-in — an account that has never touched the event list keeps receiving exactly call_ended and nothing else, so enabling this feature never changes a live integration.
message_status_updated is by far the noisiest event: a single outbound message typically produces sent → delivered → read. Only enable it if you actually track delivery, and make sure your endpoint can absorb the volume.
A template send fires template_sent, not message_sent. The two are split because campaign-style integrations want template sends without every conversational reply alongside them.

​
Webhook destinations

You can configure up to three destinations, and each one has its own URL, its own headers, and its own subscription. They are independent — there is no precedence between them, so turning message events on account-wide does not turn them on for every agent.
Configuration: Dashboard → WebhookScope: every agent on the account, voice and chat.Subscribes to: any of the five events.Best for one central integration — a single endpoint that logs everything, or one CRM sync for the whole account.
Destinations are additive. If the account webhook and a chat agent’s webhook both subscribe to message_received, that message is delivered to both URLs — two separate POSTs with an identical body.

​
Choosing events

  1. Open Dashboard → Webhook (account level) or the agent’s Webhook panel.
  2. Enter your endpoint URL.
  3. Toggle on the events you want.
  4. Save.

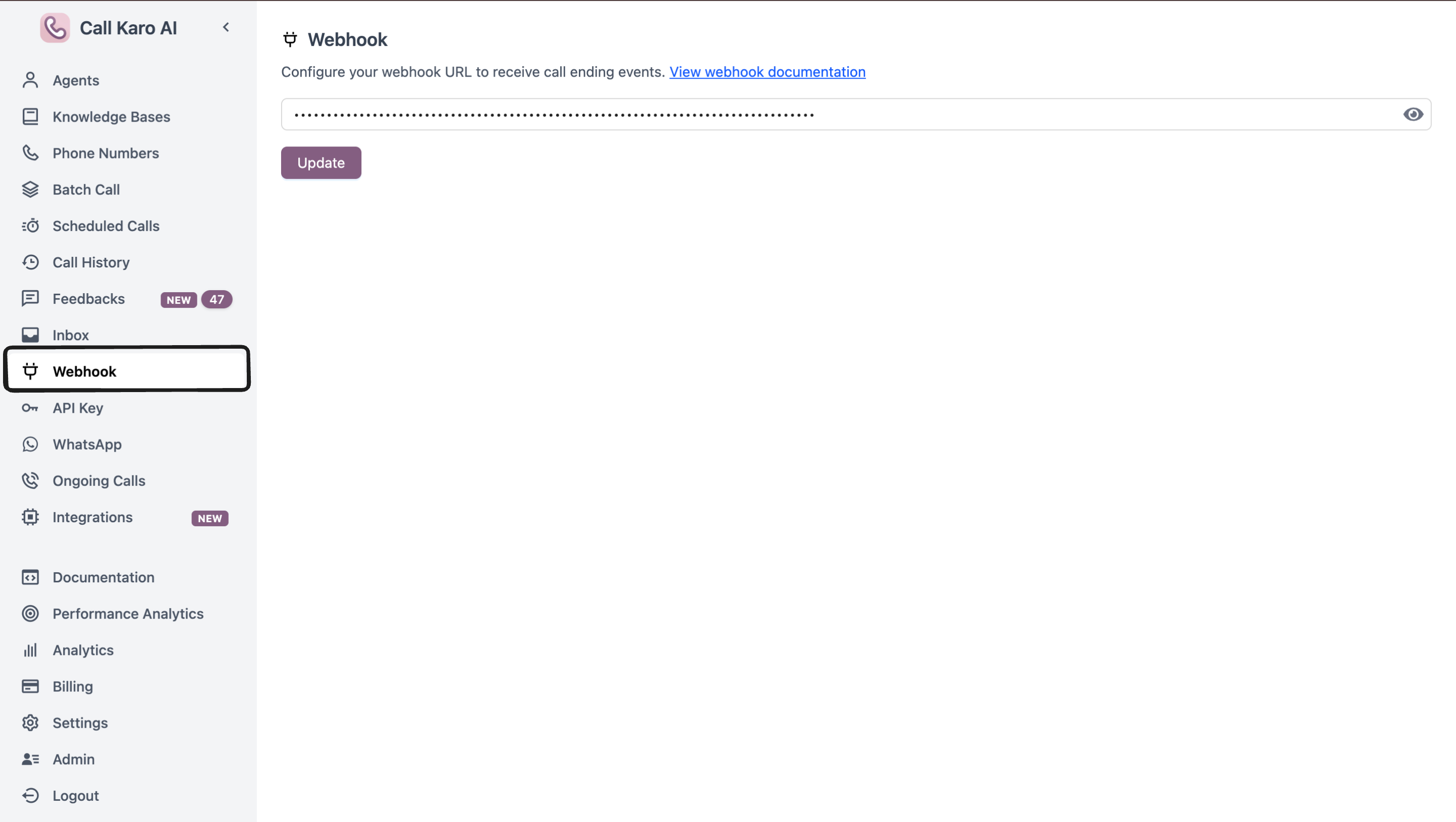

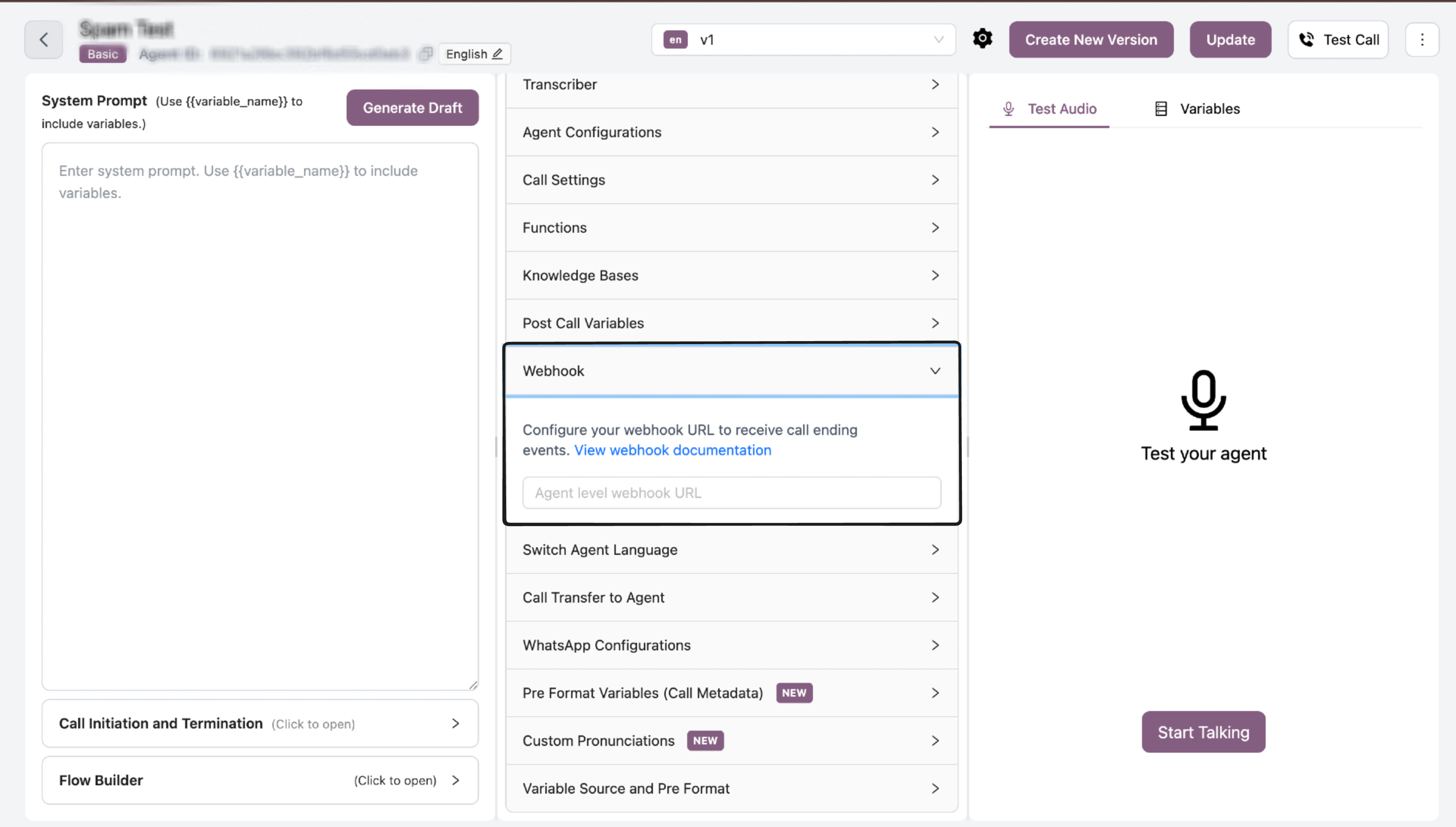

User Level Webhook An agent’s own webhook is configured the same way, on the agent: Agent Level Webhook
A URL with no events selected fires nothing. That is a deliberate choice, not an error state — leave the list untouched to keep the call_ended default, or clear it to mute the destination without deleting the URL.

​
Custom headers

Each destination can carry its own headers, which is how you authenticate the request back to yourself: Content-Type: application/json is always set for you.
Referencing a secret keeps credentials out of your agent config — the same x_secrets.NAME convention custom functions use. If the named secret does not exist, that header is omitted rather than sent literally, since shipping the string x_secrets.MY_TOKEN as an Authorization value would fail auth in a way that is much harder to diagnose than a missing header.

​
Delivery and retries

A 4xx means your endpoint understood the request and rejected it — retrying would send the identical payload into the identical rejection, so we stop. If you want a delivery retried, return 5xx.
Webhook delivery never blocks the product. A slow or dead endpoint will not delay a customer’s reply or hold up a call — the send happens in the background and failures are logged, not surfaced. So a webhook you never receive is silent: verify your endpoint is reachable rather than waiting for an error.

​
Best practices

  • Use HTTPS — always, and especially when passing a secret header
  • Respond fast — acknowledge with 2xx immediately and do your processing asynchronously; a slow endpoint burns through the timeouts
  • Switch on event — and ignore unknown events instead of failing, so new events do not break you
  • Be idempotent — retries and multiple destinations both mean you can see the same event more than once. Deduplicate on msg_id for messages and callSid for calls
  • Subscribe narrowly — every event you do not need is traffic you have to absorb, especially message_status_updated

​
Event reference

Call Ended

call_ended — transcript, duration, post-call variables

Message Events

message_received, message_sent, template_sent

Delivery Status

message_status_updated — sent, delivered, read, failed
