Overview

In-call functions execute during active AI calls when triggered by the AI agent. These allow your agent to perform real-time actions based on conversation context. Common Use Cases:
  • Check product availability
  • Book appointments (custom systems)
  • Validate customer information
  • Query databases
  • Call external APIs for live data

​
Execution Timing

[Call Starts] → [Conversation] → [AI Triggers Function] → [Function Executes] → [AI Responds with Result]
The AI agent decides when to call the function based on the description you provide.

​
Basic Mode

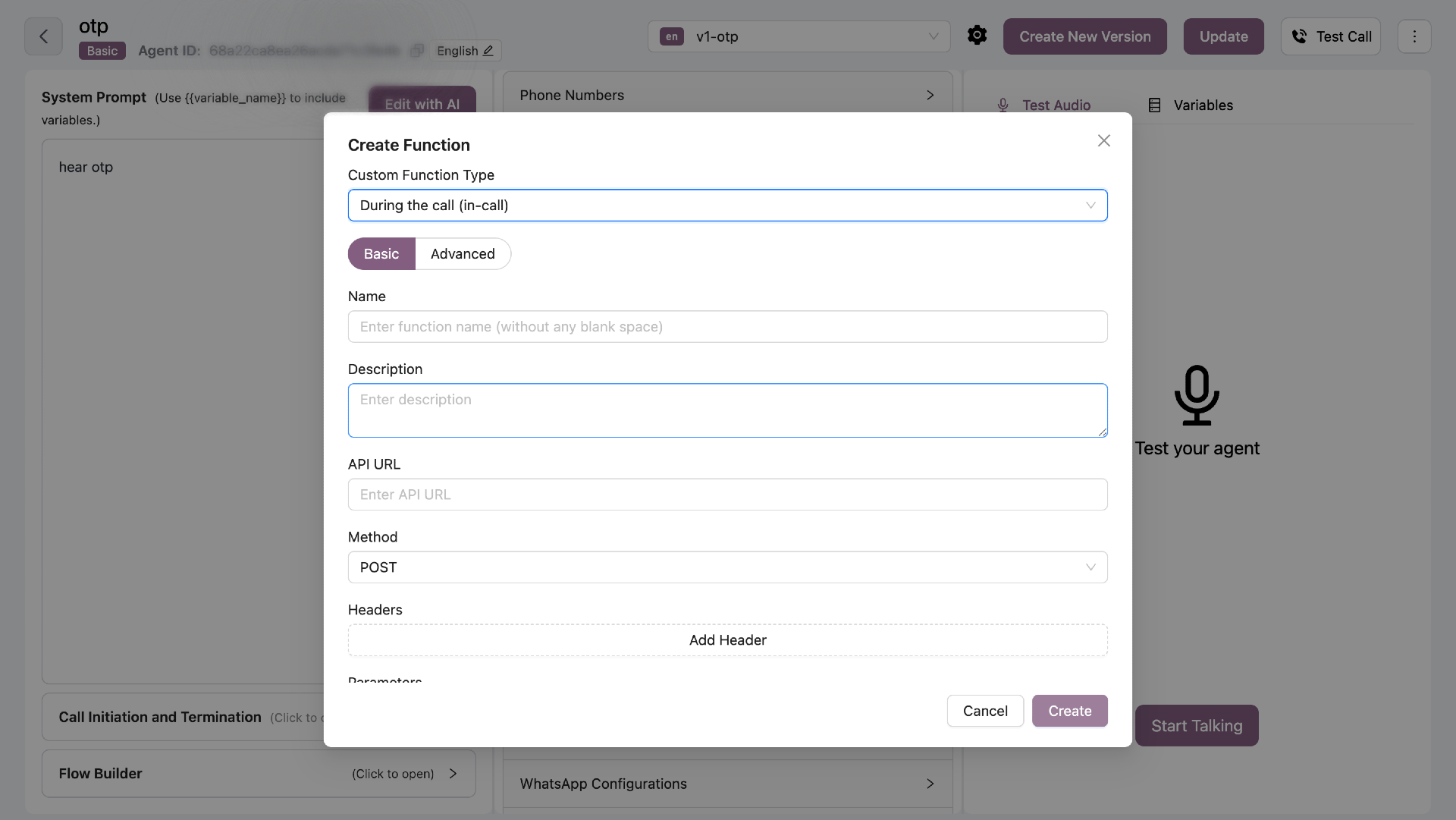

Configure API integrations with parameters that AI can fill. In-Call Basic Mode

​
Configuration Fields

FieldRequiredDescription
NameYesFunction name (no spaces)
DescriptionYesWhen AI should call this function
API URLYesEndpoint to call
MethodYesGET, POST, PUT, or DELETE
HeadersNoAuthentication headers
ParametersYesTyped parameters with descriptions

​
Description (AI Trigger)

The description tells the AI when to call this function. Example:
Check product availability when customer asks if an item is in stock
The AI will automatically call this function when it detects the customer asking about stock.

​
Parameters Configuration

Each parameter needs:
  • Key Name - Parameter name
  • Type - string or number
  • Description - What this parameter represents
Example Parameters:
Key: product_id
Type: string
Description: The unique product identifier

Key: quantity
Type: number
Description: Quantity customer wants to purchase
The AI will extract these values from the conversation and pass them to your API.

​
Advanced Mode (Python)

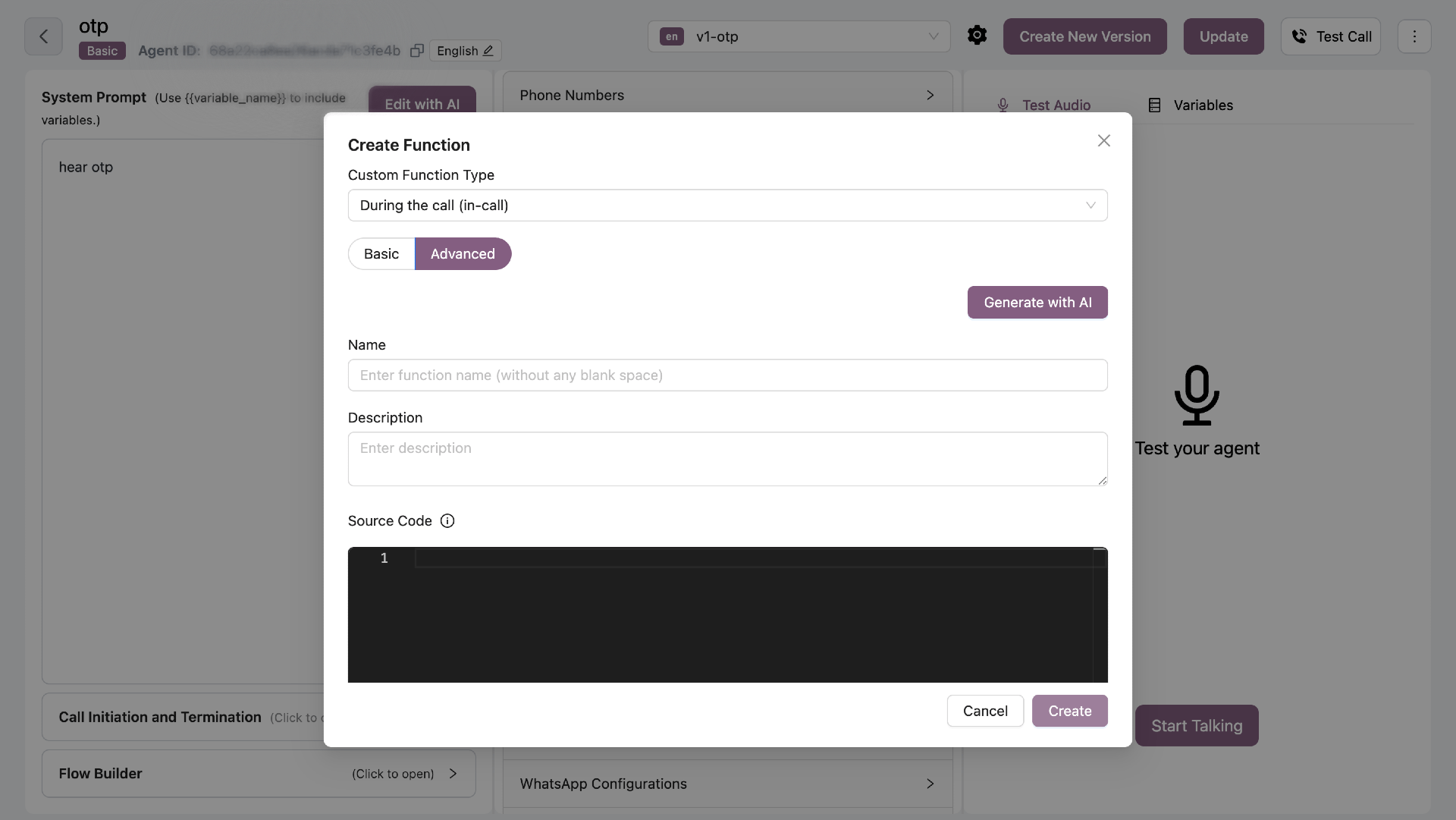

Write custom Python code with full control. In-Call Advanced Mode

​
Function Signature

async def function_name(
    ctx: RunContext,
    param1: str,
    param2: int = 1
) -> dict:
    """
    Function description for AI

    Args:
        ctx: LiveKit RunContext
        param1: Description of param1
        param2: Description of param2

    Returns:
        dict: {
            status: "success" | "error",
            data: { ... }
        }
    """
    # Your code here
Rules:
  • Must be async def
  • First parameter must be ctx: RunContext
  • All parameters must have type annotations
  • Must include detailed docstring
  • Must return dict with status field

​
Return Schema

Always return a dictionary with at least a status field:
# Success
return {
    "status": "success",
    "data": {"available": True, "quantity": 50}
}

# Error
return {
    "status": "error",
    "message": "Product not found"
}

​
Example: Check Weather

async def get_weather(
    ctx: RunContext,
    location: str,
    days: int = 1
) -> dict:
    """
    Get weather forecast for a location.

    Args:
        ctx: RunContext object
        location: City name or coordinates
        days: Number of days for forecast (1-7)

    Returns:
        dict: {
            status: "success" | "error",
            location: str,
            forecast: list[dict]
        }
    """
    # Input validation
    if not location or not isinstance(location, str):
        return {
            "status": "error",
            "message": "Location is required"
        }

    if not 1 <= days <= 7:
        return {
            "status": "error",
            "message": "Days must be between 1 and 7"
        }

    try:
        # Make API call with timeout
        async with httpx.AsyncClient(timeout=10.0) as client:
            response = await client.get(
                "https://api.weatherapi.com/v1/forecast.json",
                params={
                    "key": "YOUR_API_KEY",
                    "q": location,
                    "days": days
                }
            )

            if response.status_code != 200:
                return {
                    "status": "error",
                    "message": f"Weather API error: {response.status_code}"
                }

            data = response.json()

            return {
                "status": "success",
                "location": data["location"]["name"],
                "forecast": [
                    {
                        "date": day["date"],
                        "condition": day["day"]["condition"]["text"],
                        "max_temp": day["day"]["maxtemp_c"]
                    }
                    for day in data["forecast"]["forecastday"]
                ]
            }

    except httpx.RequestError as e:
        logger.error(f"Weather API request failed: {e}")
        return {
            "status": "error",
            "message": "Failed to fetch weather data"
        }

​
AI Generation

Click “Generate with AI” to create functions using natural language. Example Prompt:
Create a function to check product availability from our inventory API.
It should take product_id as parameter and return stock quantity.
API endpoint: https://api.example.com/inventory/check
The AI generates complete code with error handling, validation, and proper return schema.

​
Allowed Types

Parameter Types:
  • str, int, float, bool
  • None
  • dict, list
  • JSON-serializable types

​
Security Requirements

  • ✅ Input Validation - Always validate inputs
  • ✅ No Filesystem - Never read/write files
  • ✅ No OS/Process - Avoid subprocess, os.system
  • ✅ No Eval - Never use eval() or exec()
  • ✅ Timeouts - Set timeouts for external calls
  • ✅ Error Handling - Catch and return errors properly

​
Best Practices

  • Keep functions focused - One function, one purpose
  • Validate inputs - Check all parameters before use
  • Set timeouts - Don’t let API calls hang
  • Return clear errors - Help AI understand what went wrong
  • Log important events - Use logger for debugging
  • Handle edge cases - Test with various inputs
Write detailed descriptions and docstrings - they help the AI know when and how to call your function.
